pipeISO

Re-invent pipe Isometric

While adopting its core value of customer centricity and responsiveness, IDA has developed a seamless sustainable solution that transforms businesses across Europe, Middle East, Australia and India. Putting the customer first with respect to their requirements, the team has grown expertise in developing isometric designs for piping layouts of medium and large scale projects across multidisciplinary industries including Energy / Power, Shipbuilding, Automotive and Engineering & Construction.

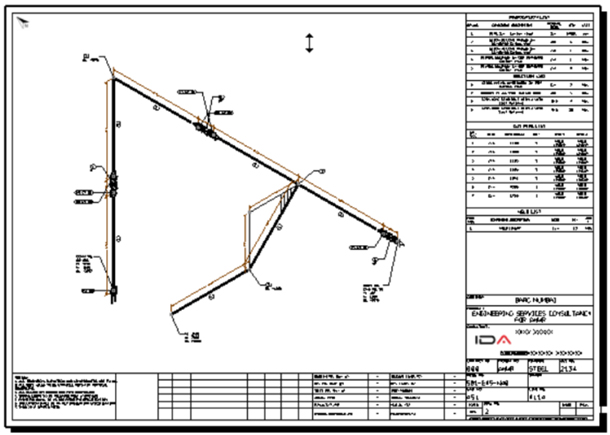

We help simplify the complex and large piping systems by portraying a realistic view which offers the ability to drafter to calculate angular offset in the pipe run. The pipe lengths are determined with extensive calculations using coordinates and elevations. As pipeISO is totally data centric and data driven, it has the capability to produce drawings in all 2D CAD formats which are inclusive of MicroStation, AutoCAD and Intergraph.

    We have listed down some of the advance features

  • Custom templates, notes, title block
  • Option of User defined axis system for isometric drawing generation

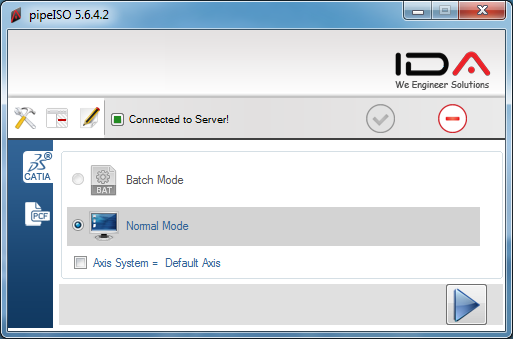

  • Reading / computing / printing any attribute on Piping or Equipment component in CATIA
